基于多层感知机的二分类

这里以多层感知机实现模拟数据的二分类为例，介绍toydl的简单使用方法。

模拟数据生成

首先生成模拟数据，并将其分割为训练集和测试集：

def get_dataset(n: int = 100) -> Tuple[SimpleDataset, SimpleDataset]:
    data = simulation_dataset.diag(n)
    training_set, test_set = data.train_test_split(train_proportion=0.7)

    return training_set, test_set

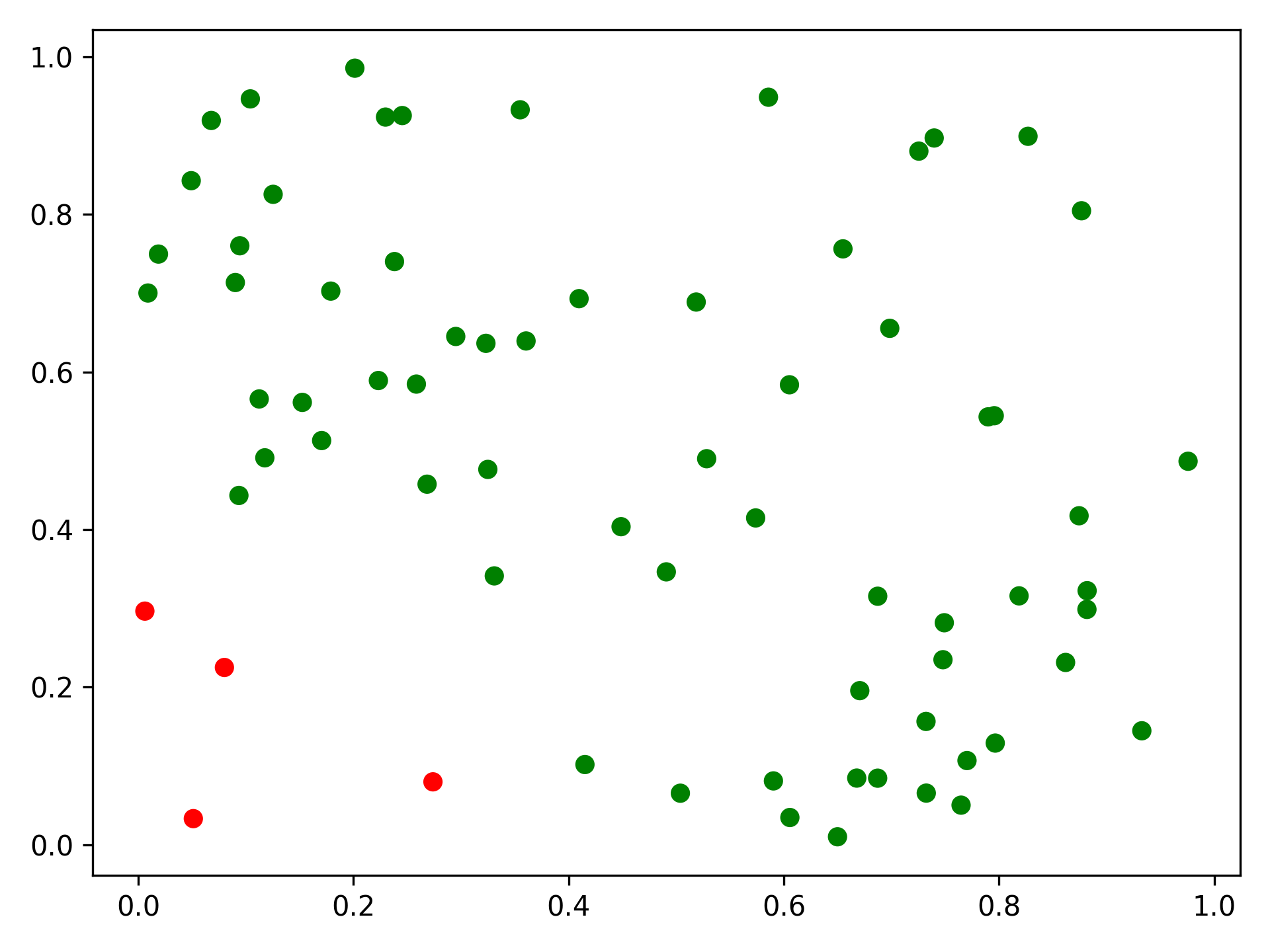

这里是一个简单的二维平面分割任务的数据：

配置网络结构

mlp_config = MLPConfig(
    in_size=2, out_size=1, hidden_layer_size=10, hidden_layer_num=2
)

mlp_model = MLPBinaryClassifyModel(mlp_config)

• 输入层：2维向量
• 输出层：1维向量
• 隐藏层：两层，每层10个神经元

训练不同优化器模型

SGD优化器

def run_sgd(
    mlp_config: MLPConfig,
    training_set: SimpleDataset,
    test_set: SimpleDataset,
    learning_rate: float,
    max_epochs: int = 500,
):
    mlp_model = MLPBinaryClassifyModel(mlp_config)
    sgd_optimizer = SGD(mlp_model.net.parameters(), learning_rate)
    training_loss, testing_loss, test_result = mlp_model.train(
        training_set, test_set, sgd_optimizer, max_epochs=max_epochs
    )
    return training_loss, testing_loss, test_result

Momentum优化器

def run_momentum(
    mlp_config: MLPConfig,
    training_set: SimpleDataset,
    test_set: SimpleDataset,
    learning_rate: float,
    max_epochs: int = 500,
):
    momentum = 0.5
    mlp_model = MLPBinaryClassifyModel(mlp_config)
    optimizer = Momentum(mlp_model.net.parameters(), learning_rate, momentum)
    training_loss, testing_loss, test_result = mlp_model.train(
        training_set, test_set, optimizer, max_epochs=max_epochs
    )
    return training_loss, testing_loss, test_result

优化器性能对比

通过在一个图表中同时展示不同优化器的训练和测试损失曲线，我们可以直观地比较它们的性能。plot_multiple_optimizers函数可以接收多个优化器的训练和测试结果，并将它们绘制在同一张图上进行比较。

运行优化器比较

def run():
    n = 100
    training_set, test_set = get_dataset(n)

    mlp_config = MLPConfig(
        in_size=2, out_size=1, hidden_layer_size=10, hidden_layer_num=2
    )

    learning_rate = 0.01
    max_epochs = 500

    # 训练SGD模型
    sgd_training_loss, sgd_testing_loss, sgd_test_result = run_sgd(
        mlp_config, training_set, test_set, learning_rate, max_epochs
    )

    # 训练Momentum模型
    momentum_training_loss, momentum_testing_loss, momentum_result = run_momentum(
        mlp_config, training_set, test_set, learning_rate, max_epochs
    )

    # 比较优化器性能
    optimizer_results = {
        "SGD": (sgd_training_loss, sgd_testing_loss, sgd_test_result),
        "Momentum": (momentum_training_loss, momentum_testing_loss, momentum_result)
    }
    plot_multiple_optimizers(optimizer_results, title="优化器性能对比")

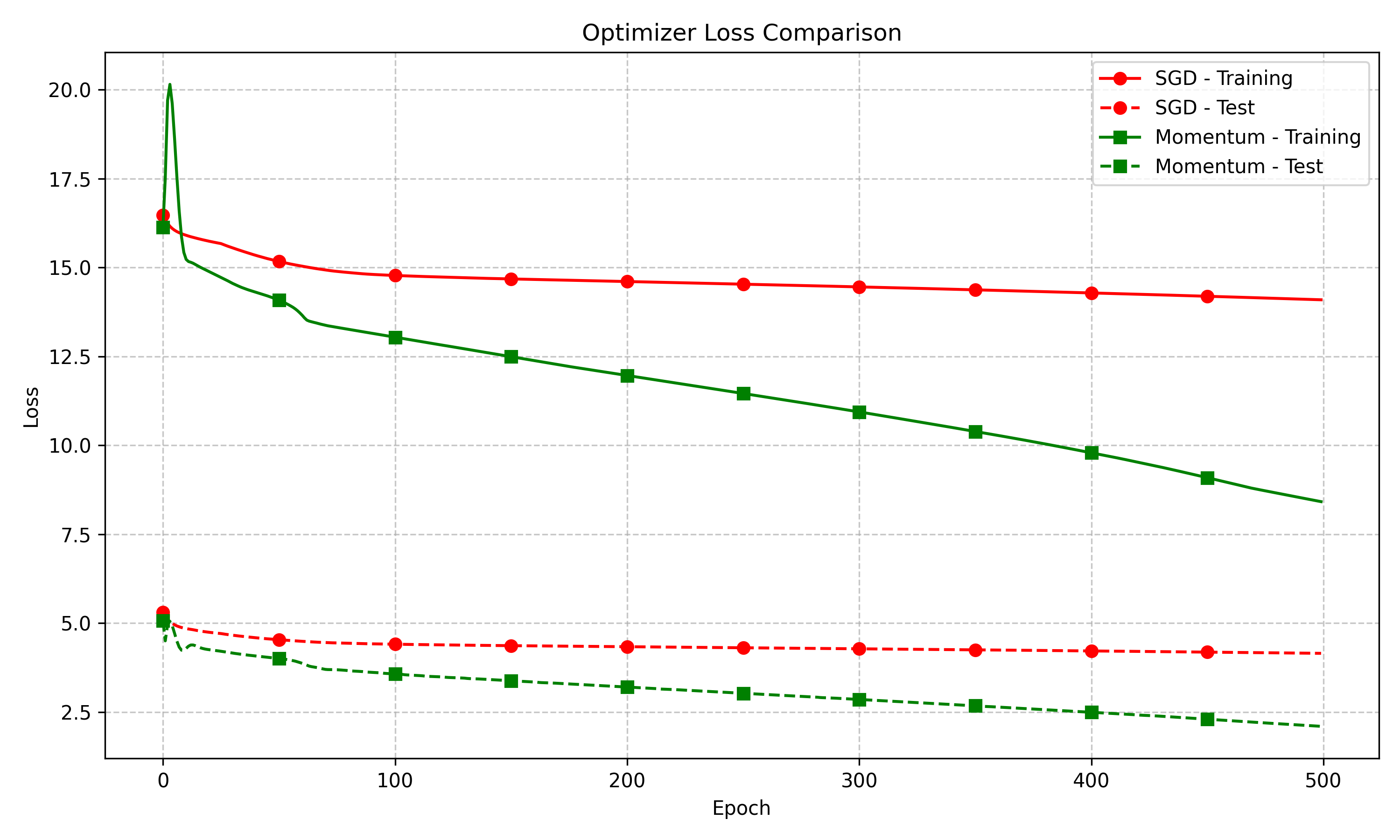

运行上述代码后，可以得到如下的优化器性能对比图：

MLP完整训练步骤

class MLPBinaryClassifyModel:
    def __init__(self, mlp_config: MLPConfig):
        self.net = MLPBinaryClassifyNetFactory(mlp_config)

    def forward_once(self, x: list[float], y: int) -> tuple[Scalar, Scalar]:
        y_pred = self.net.forward(list(Scalar(v) for v in x))
        loss = CrossEntropyLoss().forward(y_true=y, y_pred=y_pred)
        return y_pred, loss

    def evaluate(self, dateset: SimpleDataset) -> tuple[float, int]:
        # switch to eval mode
        self.net.eval()
        total_loss = 0.0
        correct = 0
        for x, y in dateset:
            y_pred, loss = self.forward_once(x, y)
            if y == 1:
                correct += 1 if y_pred.data > 0.5 else 0
            else:
                correct += 1 if y_pred.data < 0.5 else 0
            total_loss += loss.data

        # switch back to train mode
        self.net.train()

        return total_loss, correct

    def train(
        self,
        training_set: SimpleDataset,
        test_set: SimpleDataset,
        optimizer: Optimizer,
        max_epochs: int = 500,
    ) -> Tuple[List[float], List[float], str]:
        training_loss, testing_loss, test_correct = [], [], 0
        for epoch in range(1, max_epochs + 1):
            optimizer.zero_grad()

            # Forward & Backward
            for x, y in training_set:
                _, loss = self.forward_once(x, y)
                (loss / len(training_set)).backward()

            # Update parameters
            optimizer.step()

            # Evaluation
            train_loss, train_correct = self.evaluate(training_set)
            test_loss, test_correct = self.evaluate(test_set)

            training_loss.append(train_loss)
            testing_loss.append(test_loss)
            if epoch % 10 == 0 or epoch == max_epochs:
                print(
                    f"[Epoch {epoch}]Train Loss = {train_loss}, "
                    f"right({train_correct})/total({len(training_set)}) = {train_correct / len(training_set)}\n"
                    f"[Epoch {epoch}]Test  Loss = {test_loss},  "
                    f"right({test_correct})/total({len(test_set)}) = {test_correct / len(test_set)}"
                )
        test_result = f"right/total = {test_correct}/{len(test_set)}"
        return training_loss, testing_loss, test_result

实验完整代码

本示例的完整代码: example/mlp_binary.py

from pathlib import Path
from typing import List, Tuple

import matplotlib.pyplot as plt

import toydl.dataset.simulation as simulation_dataset

from toydl.core.optim import SGD, Momentum, Optimizer
from toydl.core.scalar.scalar import Scalar
from toydl.dataset.simple import SimpleDataset
from toydl.loss.cross_entropy import CrossEntropyLoss
from toydl.network.mlp import MLPBinaryClassifyNetFactory, MLPConfig


class MLPBinaryClassifyModel:
    def __init__(self, mlp_config: MLPConfig):
        self.net = MLPBinaryClassifyNetFactory(mlp_config)

    def forward_once(self, x: list[float], y: int) -> tuple[Scalar, Scalar]:
        y_pred = self.net.forward(list(Scalar(v) for v in x))
        loss = CrossEntropyLoss().forward(y_true=y, y_pred=y_pred)
        return y_pred, loss

    def evaluate(self, dateset: SimpleDataset) -> tuple[float, int]:
        # switch to eval mode
        self.net.eval()
        total_loss = 0.0
        correct = 0
        for x, y in dateset:
            y_pred, loss = self.forward_once(x, y)
            if y == 1:
                correct += 1 if y_pred.data > 0.5 else 0
            else:
                correct += 1 if y_pred.data < 0.5 else 0
            total_loss += loss.data

        # switch back to train mode
        self.net.train()

        return total_loss, correct

    def train(
        self,
        training_set: SimpleDataset,
        test_set: SimpleDataset,
        optimizer: Optimizer,
        max_epochs: int = 500,
    ) -> Tuple[List[float], List[float], str]:
        training_loss, testing_loss, test_correct = [], [], 0
        for epoch in range(1, max_epochs + 1):
            optimizer.zero_grad()

            # Forward & Backward
            for x, y in training_set:
                _, loss = self.forward_once(x, y)
                (loss / len(training_set)).backward()

            # Update parameters
            optimizer.step()

            # Evaluation
            train_loss, train_correct = self.evaluate(training_set)
            test_loss, test_correct = self.evaluate(test_set)

            training_loss.append(train_loss)
            testing_loss.append(test_loss)
            if epoch % 10 == 0 or epoch == max_epochs:
                print(
                    f"[Epoch {epoch}]Train Loss = {train_loss}, "
                    f"right({train_correct})/total({len(training_set)}) = {train_correct / len(training_set)}\n"
                    f"[Epoch {epoch}]Test  Loss = {test_loss},  "
                    f"right({test_correct})/total({len(test_set)}) = {test_correct / len(test_set)}"
                )
        test_result = f"right/total = {test_correct}/{len(test_set)}"
        return training_loss, testing_loss, test_result



def get_dataset(n: int = 100) -> Tuple[SimpleDataset, SimpleDataset]:
    data = simulation_dataset.diag(n)
    training_set, test_set = data.train_test_split(train_proportion=0.7)

    return training_set, test_set




def run_sgd(
    mlp_config: MLPConfig,
    training_set: SimpleDataset,
    test_set: SimpleDataset,
    learning_rate: float,
    max_epochs: int = 500,
):
    mlp_model = MLPBinaryClassifyModel(mlp_config)

    sgd_optimizer = SGD(mlp_model.net.parameters(), learning_rate)

    training_loss, testing_loss, test_result = mlp_model.train(
        training_set, test_set, sgd_optimizer, max_epochs=max_epochs
    )
    return training_loss, testing_loss, test_result


def run_momentum(
    mlp_config: MLPConfig,
    training_set: SimpleDataset,
    test_set: SimpleDataset,
    learning_rate: float,
    max_epochs: int = 500,
):
    momentum = 0.5
    mlp_model = MLPBinaryClassifyModel(mlp_config)

    optimizer = Momentum(mlp_model.net.parameters(), learning_rate, momentum)

    training_loss, testing_loss, test_result = mlp_model.train(
        training_set, test_set, optimizer, max_epochs=max_epochs
    )
    return training_loss, testing_loss, test_result


def plot_multiple_optimizers(
    optimizer_results: dict[str, tuple[list[float], list[float], str]],
    plot_type: str = "both",  # "train", "test", or "both"
    title: str = "Optimizer Comparison",
    filename: str = "optimizer_comparison.png",
    output_dir: Path | None = None,
):
    """
    Plot losses for multiple optimizers in one figure for comparison.
    """
    plt.clf()
    plt.figure(figsize=(10, 6))

    colors = ["r", "g", "b", "c", "m", "y", "k"]
    markers = ["o", "s", "^", "*", "x", "D", "v"]

    color_idx = 0
    for optimizer_name, (training_loss, testing_loss, _) in optimizer_results.items():
        color = colors[color_idx % len(colors)]
        marker = markers[color_idx % len(markers)]

        if plot_type in ["train", "both"]:
            plt.plot(
                training_loss,
                f"{color}-",
                label=f"{optimizer_name} - Training",
                marker=marker,
                markevery=max(1, len(training_loss) // 10),
            )

        if plot_type in ["test", "both"]:
            plt.plot(
                testing_loss,
                f"{color}--",
                label=f"{optimizer_name} - Test",
                marker=marker,
                markevery=max(1, len(testing_loss) // 10),
            )

        color_idx += 1

    plt.title(title)
    plt.xlabel("Epoch")
    plt.ylabel("Loss")
    plt.legend()
    plt.grid(True, linestyle="--", alpha=0.7)
    plt.tight_layout()

    # Handle output directory
    if output_dir is not None:
        output_dir.mkdir(exist_ok=True, parents=True)
        save_path = output_dir / filename
    else:
        save_path = Path(f"./{filename}")

    plt.savefig(save_path, dpi=300)
    plt.show()

    # Print the test results
    print("\nTest Results:")
    for optimizer_name, (_, _, test_result) in optimizer_results.items():
        print(f"{optimizer_name}: {test_result}")


def run():
    # Setup output directory using pathlib
    current_file = Path(__file__)
    image_dir = current_file.parent / "images"
    image_dir.mkdir(exist_ok=True, parents=True)

    n = 100
    training_set, test_set = get_dataset(n)
    training_set.plot(filename=str(image_dir / "training_set.png"))
    mlp_config = MLPConfig(
        in_size=2, out_size=1, hidden_layer_size=10, hidden_layer_num=2
    )

    learning_rate = 0.01
    max_epochs = 500

    sgd_training_loss, sgd_testing_loss, sgd_test_result = run_sgd(
        mlp_config, training_set, test_set, learning_rate, max_epochs
    )
    momentum_training_loss, momentum_testing_loss, momentum_result = run_momentum(
        mlp_config, training_set, test_set, learning_rate, max_epochs
    )

    # Plot comparison of optimizers
    optimizer_results = {
        "SGD": (sgd_training_loss, sgd_testing_loss, sgd_test_result),
        "Momentum": (momentum_training_loss, momentum_testing_loss, momentum_result),
    }
    plot_multiple_optimizers(
        optimizer_results,
        title="Optimizer Loss Comparison",
        filename="optimizer_comparison.png",
        output_dir=image_dir,
    )


if __name__ == "__main__":
    run()
