DQN

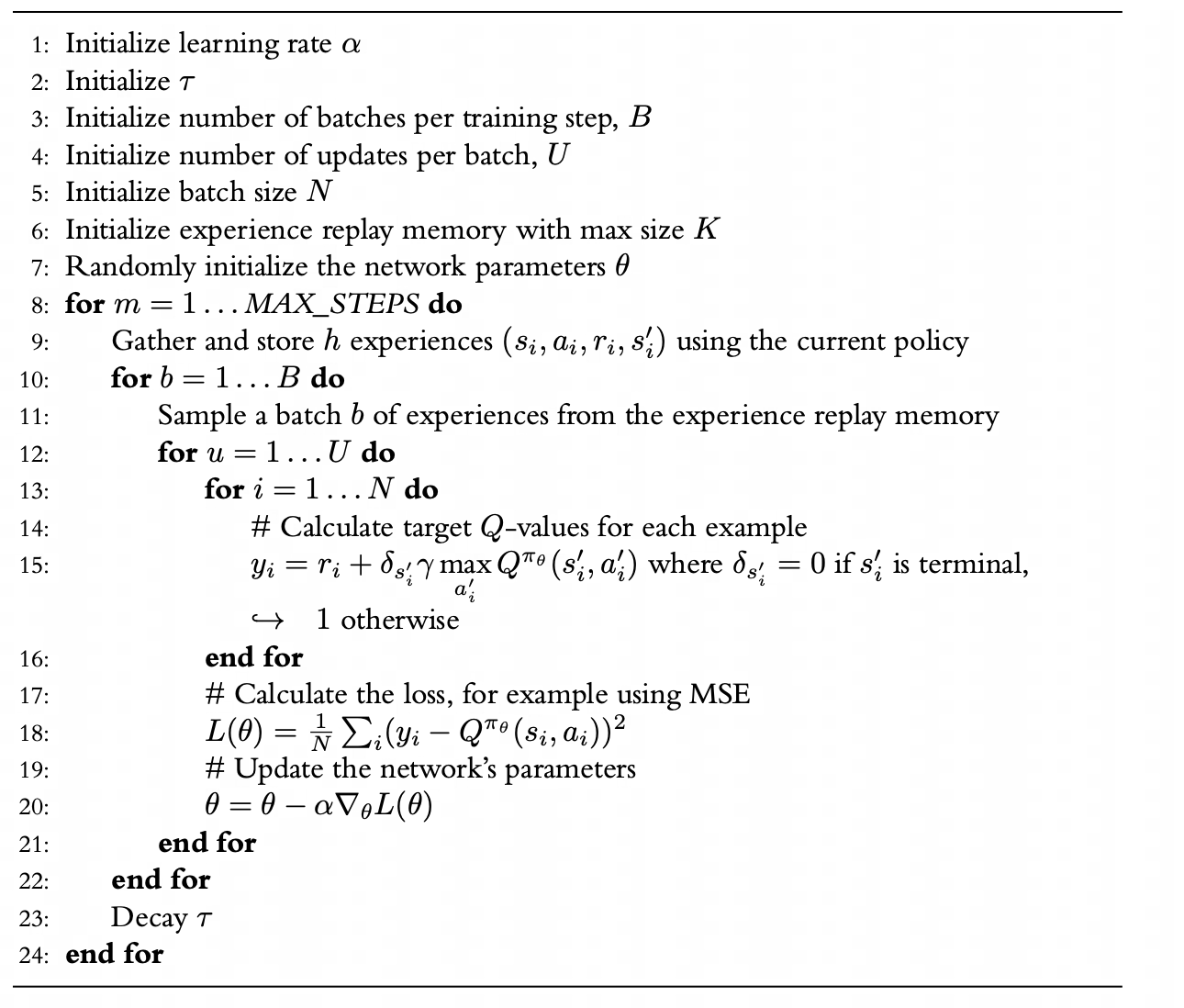

Figure: DQN algorithm pseudocode ¹

toyrl.dqn.simple_config module-attribute

simple_config = DqnConfig(env_name='CartPole-v1', render_mode=None, solved_threshold=475.0, max_training_steps=500000, learning_rate=0.00025, use_target_network=True, target_soft_update_beta=0.0, target_update_frequency=5, log_wandb=True)

toyrl.dqn.trainer module-attribute

trainer = DqnTrainer(simple_config)

toyrl.dqn.DqnConfig dataclass

DqnConfig(env_name: str = 'CartPole-v1', render_mode: str | None = None, solved_threshold: float = 475.0, gamma: float = 0.999, replay_buffer_capacity: int = 10000, max_training_steps: int = 500000, learning_starts: int = 10000, policy_update_frequency: int = 10, batches_per_training_step: int = 16, batch_size: int = 128, updates_per_batch: int = 1, learning_rate: float = 0.01, use_target_network: bool = False, target_update_frequency: int = 10, target_soft_update_beta: float = 0.0, log_wandb: bool = False)

Configuration for DQN algorithm.

env_name class-attribute instance-attribute

env_name: str = 'CartPole-v1'

render_mode class-attribute instance-attribute

render_mode: str | None = None

solved_threshold class-attribute instance-attribute

solved_threshold: float = 475.0

gamma class-attribute instance-attribute

gamma: float = 0.999

The discount factor for future rewards.

replay_buffer_capacity class-attribute instance-attribute

replay_buffer_capacity: int = 10000

The maximum capacity of the experience replay buffer.

max_training_steps class-attribute instance-attribute

max_training_steps: int = 500000

The maximum number of environment steps to train for.

learning_starts class-attribute instance-attribute

learning_starts: int = 10000

The number of steps to collect before starting learning.

policy_update_frequency class-attribute instance-attribute

policy_update_frequency: int = 10

How often to update the policy network (in environment steps).

batches_per_training_step class-attribute instance-attribute

batches_per_training_step: int = 16

The number of experience batches to sample in each training step.

batch_size class-attribute instance-attribute

batch_size: int = 128

The size of each training batch.

updates_per_batch class-attribute instance-attribute

updates_per_batch: int = 1

The number of optimization steps to perform on each batch.

learning_rate class-attribute instance-attribute

learning_rate: float = 0.01

The learning rate for the optimizer.

use_target_network class-attribute instance-attribute

use_target_network: bool = False

Whether to use a separate target network (Double DQN when True).

target_update_frequency class-attribute instance-attribute

target_update_frequency: int = 10

How often to update the target network (in environment steps).

target_soft_update_beta class-attribute instance-attribute

target_soft_update_beta: float = 0.0

The soft update parameter for target network (0.0 means hard update).

log_wandb class-attribute instance-attribute

log_wandb: bool = False

Whether to log the training process to Weights and Biases.

toyrl.dqn.PolicyNet

PolicyNet(env_dim: int, action_num: int)

Bases: Module

Source code in toyrl/dqn.py

def __init__(
    self,
    env_dim: int,
    action_num: int,
) -> None:
    super().__init__()
    self.env_dim = env_dim
    self.action_num = action_num

    layers = [
        nn.Linear(self.env_dim, 128),
        nn.ReLU(),
        nn.Linear(128, 64),
        nn.ReLU(),
        nn.Linear(64, self.action_num),
    ]
    self.model = nn.Sequential(*layers)

env_dim instance-attribute

env_dim = env_dim

action_num instance-attribute

action_num = action_num

model instance-attribute

model = Sequential(*layers)

forward

forward(x: Tensor) -> Tensor

Source code in toyrl/dqn.py

def forward(self, x: torch.Tensor) -> torch.Tensor:
    return self.model(x)

toyrl.dqn.Experience dataclass

Experience(terminated: bool, truncated: bool, observation: Any, action: Any, reward: float, next_observation: Any)

terminated instance-attribute

terminated: bool

truncated instance-attribute

truncated: bool

observation instance-attribute

observation: Any

action instance-attribute

action: Any

reward instance-attribute

reward: float

next_observation instance-attribute

next_observation: Any

toyrl.dqn.ReplayBuffer dataclass

ReplayBuffer(replay_buffer_size: int = 10000, buffer: list[Experience] = list(), _head_pointer: int = 0)

replay_buffer_size class-attribute instance-attribute

replay_buffer_size: int = 10000

buffer class-attribute instance-attribute

buffer: list[Experience] = field(default_factory=list)

__len__

__len__() -> int

Source code in toyrl/dqn.py

def __len__(self) -> int:
    return len(self.buffer)

add_experience

add_experience(experience: Experience) -> None

Source code in toyrl/dqn.py

def add_experience(self, experience: Experience) -> None:
    if len(self.buffer) < self.replay_buffer_size:
        # Buffer not full yet, append new experience
        self.buffer.append(experience)
    else:
        # Buffer full, overwrite oldest experience
        index = self._head_pointer % self.replay_buffer_size
        self.buffer[index] = experience

    # Increment pointer
    self._head_pointer += 1

reset

reset() -> None

Source code in toyrl/dqn.py

def reset(self) -> None:
    self.buffer = []
    self._head_pointer = 0

sample

sample(batch_size: int) -> list[Experience]

Source code in toyrl/dqn.py

def sample(self, batch_size: int) -> list[Experience]:
    return random.sample(self.buffer, min(batch_size, len(self.buffer)))

toyrl.dqn.Agent

Agent(policy_net: PolicyNet, target_net: PolicyNet | None, optimizer: Optimizer, replay_buffer_size: int)

Source code in toyrl/dqn.py

def __init__(
    self,
    policy_net: PolicyNet,
    target_net: PolicyNet | None,
    optimizer: torch.optim.Optimizer,
    replay_buffer_size: int,
) -> None:
    self._policy_net = policy_net
    self._target_net = target_net
    self._optimizer = optimizer
    self._replay_buffer = ReplayBuffer(replay_buffer_size)
    self._action_num = policy_net.action_num

add_experience

add_experience(experience: Experience) -> None

Source code in toyrl/dqn.py

def add_experience(self, experience: Experience) -> None:
    self._replay_buffer.add_experience(experience)

act

act(observation: floating, tau: float) -> tuple[int, float]

Source code in toyrl/dqn.py

def act(self, observation: np.floating, tau: float) -> tuple[int, float]:
    x = torch.from_numpy(observation.astype(np.float32))
    with torch.no_grad():
        logits = self._policy_net(x)
    next_action = torch.distributions.Categorical(logits=logits / tau).sample().item()
    q_value = logits[next_action].item()
    return next_action, q_value

sample

sample(batch_size: int) -> list[Experience]

Source code in toyrl/dqn.py

def sample(self, batch_size: int) -> list[Experience]:
    return self._replay_buffer.sample(batch_size)

policy_update

policy_update(gamma: float, experiences: list[Experience]) -> float

Source code in toyrl/dqn.py

def policy_update(self, gamma: float, experiences: list[Experience]) -> float:
    observations = torch.tensor([experience.observation for experience in experiences])
    actions = torch.tensor([experience.action for experience in experiences], dtype=torch.float32)
    next_observations = torch.tensor([experience.next_observation for experience in experiences])
    rewards = torch.tensor([experience.reward for experience in experiences])
    terminated = torch.tensor(
        [experience.terminated for experience in experiences],
        dtype=torch.float32,
    )

    # q preds
    action_q_preds = self._policy_net(observations).gather(1, actions.long().unsqueeze(1)).squeeze(1)

    with torch.no_grad():
        next_action_logits = self._policy_net(next_observations)
        next_actions = torch.argmax(next_action_logits, dim=1)
        if self._target_net is None:  # Vanilla DQN
            next_action_q_preds = torch.gather(next_action_logits, 1, next_actions.unsqueeze(1)).squeeze(1)
        else:  # Double DQN
            next_action_q_preds = (
                self._target_net(next_observations).gather(1, next_actions.unsqueeze(1)).squeeze(1)
            )
    action_q_targets = rewards + gamma * (1 - terminated) * next_action_q_preds
    loss = torch.nn.functional.mse_loss(action_q_preds, action_q_targets)
    # update
    self._optimizer.zero_grad()
    loss.backward()
    self._optimizer.step()
    return loss.item()

polyak_update

polyak_update(beta: float) -> None

Source code in toyrl/dqn.py

def polyak_update(self, beta: float) -> None:
    if self._target_net is not None:
        for target_param, param in zip(self._target_net.parameters(), self._policy_net.parameters()):
            target_param.data.copy_(beta * target_param.data + (1 - beta) * param.data)
    else:
        raise ValueError("Target net is not set.")

toyrl.dqn.DqnTrainer

DqnTrainer(config: DqnConfig)

Source code in toyrl/dqn.py

def __init__(self, config: DqnConfig) -> None:
    self.config = config
    self.env = self._make_env()
    if isinstance(self.env.action_space, gym.spaces.Discrete) is False:
        raise ValueError("Only discrete action space is supported.")
    env_dim = self.env.observation_space.shape[0]
    action_num = self.env.action_space.n

    policy_net = PolicyNet(env_dim=env_dim, action_num=action_num)
    optimizer = optim.Adam(policy_net.parameters(), lr=config.learning_rate)
    if config.use_target_network:
        target_net = PolicyNet(env_dim=env_dim, action_num=action_num)
        target_net.load_state_dict(policy_net.state_dict())
    else:
        target_net = None
    self.agent = Agent(
        policy_net=policy_net,
        target_net=target_net,
        optimizer=optimizer,
        replay_buffer_size=config.replay_buffer_capacity,
    )

    self.gamma = config.gamma
    self.solved_threshold = config.solved_threshold
    if config.log_wandb:
        wandb.init(
            # set the wandb project where this run will be logged
            project=self._get_dqn_name(),
            name=f"[{config.env_name}],lr={config.learning_rate}",
            # track hyperparameters and run metadata
            config=asdict(config),
        )

config instance-attribute

config = config

env instance-attribute

env = _make_env()

agent instance-attribute

agent = Agent(policy_net=policy_net, target_net=target_net, optimizer=optimizer, replay_buffer_size=replay_buffer_capacity)

gamma instance-attribute

gamma = gamma

solved_threshold instance-attribute

solved_threshold = solved_threshold

train

train() -> None

Source code in toyrl/dqn.py

def train(self) -> None:
    tau = 5.0
    global_step = 0
    observation, _ = self.env.reset()
    while global_step < self.config.max_training_steps:
        global_step += 1
        # decay tau
        tau = max(0.1, tau * 0.995)

        action, q_value = self.agent.act(observation, tau)
        if self.config.log_wandb:
            wandb.log({"global_step": global_step, "q_value": q_value})

        next_observation, reward, terminated, truncated, info = self.env.step(action)
        experience = Experience(
            observation=observation,
            action=action,
            reward=float(reward),
            next_observation=next_observation,
            terminated=terminated,
            truncated=truncated,
        )
        self.agent.add_experience(experience)
        observation = next_observation

        if terminated or truncated:
            if info and "episode" in info:
                reward = info["episode"]["r"]
                print(f"global_step={global_step}, episodic_return={reward}")
                if self.config.log_wandb:
                    wandb.log(
                        {
                            "global_step": global_step,
                            "episode_reward": reward,
                        }
                    )

        if self.env.render_mode is not None:
            self.env.render()

        if global_step >= self.config.learning_starts and global_step % self.config.policy_update_frequency == 0:
            loss = self._train_step()
            if self.config.log_wandb:
                wandb.log(
                    {
                        "global_step": global_step,
                        "loss": loss,
                    }
                )
        # update target net
        if self.config.use_target_network and global_step % self.config.target_update_frequency == 0:
            self.agent.polyak_update(beta=self.config.target_soft_update_beta)

---

1. L. Graesser and W. L. Keng, Foundations of deep reinforcement learning: Theory and practice in python. Addison-Wesley Professional, 2019. ↩
