PPO

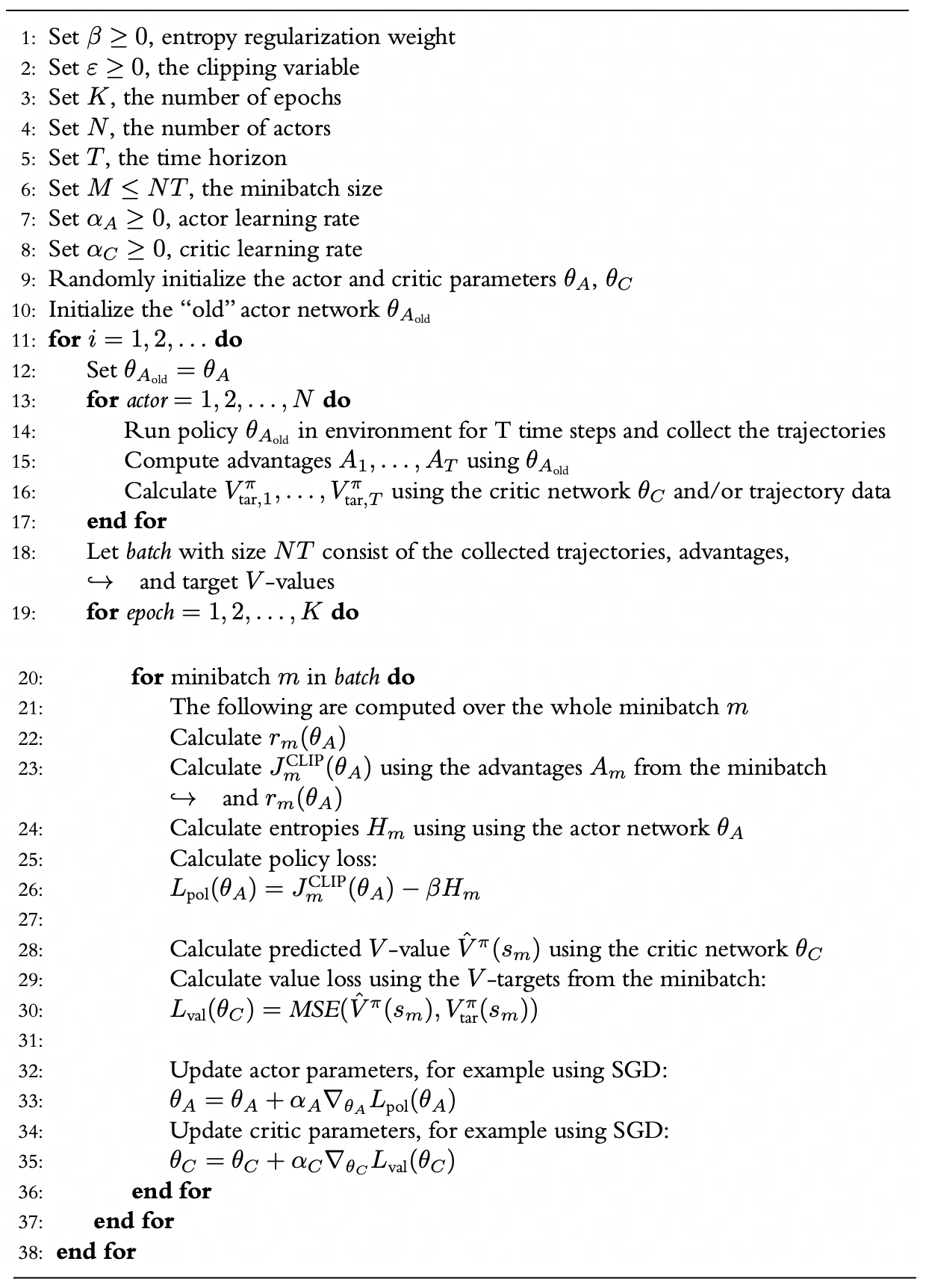

Figure: PPO algorithm pseudocode ¹

toyrl.ppo.default_config module-attribute

default_config = PPOConfig(env_name='CartPole-v1', render_mode=None, solved_threshold=475.0, gamma=0.99, lambda_=0.95, epsilon=0.2, entropy_coef=0.01, total_timesteps=1000000, time_horizons=256, update_epochs=4, num_minibatches=4, learning_rate=0.00025, log_wandb=True)

toyrl.ppo.trainer module-attribute

trainer = PPOTrainer(default_config)

toyrl.ppo.PPOConfig dataclass

PPOConfig(env_name: str = 'CartPole-v1', num_envs: int = 4, render_mode: str | None = None, solved_threshold: float = 475.0, gamma: float = 0.999, lambda_: float = 0.98, epsilon: float = 0.2, entropy_coef: float = 0.01, total_timesteps: int = 500000, time_horizons: int = 128, update_epochs: int = 4, num_minibatches: int = 4, learning_rate: float = 0.00025, anneal_learning_rate: bool = True, log_wandb: bool = False)

Configuration for PPO algorithm.

env_name class-attribute instance-attribute

env_name: str = 'CartPole-v1'

num_envs class-attribute instance-attribute

num_envs: int = 4

The number of parallel game environments

render_mode class-attribute instance-attribute

render_mode: str | None = None

solved_threshold class-attribute instance-attribute

solved_threshold: float = 475.0

gamma class-attribute instance-attribute

gamma: float = 0.999

lambda_ class-attribute instance-attribute

lambda_: float = 0.98

epsilon class-attribute instance-attribute

epsilon: float = 0.2

entropy_coef class-attribute instance-attribute

entropy_coef: float = 0.01

total_timesteps class-attribute instance-attribute

total_timesteps: int = 500000

time_horizons class-attribute instance-attribute

time_horizons: int = 128

The number of time steps to collect before updating the policy

update_epochs class-attribute instance-attribute

update_epochs: int = 4

The K epochs to update the policy

num_minibatches class-attribute instance-attribute

num_minibatches: int = 4

The number of mini-batches

learning_rate class-attribute instance-attribute

learning_rate: float = 0.00025

anneal_learning_rate class-attribute instance-attribute

anneal_learning_rate: bool = True

log_wandb class-attribute instance-attribute

log_wandb: bool = False

toyrl.ppo.ActorPolicyNet

ActorPolicyNet(env_dim: int, action_num: int)

Bases: Module

Source code in toyrl/ppo.py

def __init__(self, env_dim: int, action_num: int) -> None:
    super().__init__()
    layers = [
        nn.Linear(env_dim, 64),
        nn.Tanh(),
        nn.Linear(64, 64),
        nn.Tanh(),
        nn.Linear(64, action_num),
    ]
    self.model = nn.Sequential(*layers)

model instance-attribute

model = Sequential(*layers)

forward

forward(x: Tensor) -> Tensor

Source code in toyrl/ppo.py

def forward(self, x: torch.Tensor) -> torch.Tensor:
    return self.model(x)

toyrl.ppo.CriticValueNet

CriticValueNet(env_dim: int)

Bases: Module

Source code in toyrl/ppo.py

def __init__(self, env_dim: int) -> None:
    super().__init__()
    layers = [
        nn.Linear(env_dim, 64),
        nn.Tanh(),
        nn.Linear(64, 64),
        nn.Tanh(),
        nn.Linear(64, 1),
    ]
    self.model = nn.Sequential(*layers)

model instance-attribute

model = Sequential(*layers)

forward

forward(x: Tensor) -> Tensor

Source code in toyrl/ppo.py

def forward(self, x: torch.Tensor) -> torch.Tensor:
    return self.model(x)

toyrl.ppo.Experience dataclass

Experience(env_id: int, terminated: bool, truncated: bool, observation: Any, reward: float, next_observation: Any, action: Any, action_logprob: float, advantage: float | None = None, target_value: float | None = None)

env_id instance-attribute

env_id: int

terminated instance-attribute

terminated: bool

truncated instance-attribute

truncated: bool

observation instance-attribute

observation: Any

reward instance-attribute

reward: float

next_observation instance-attribute

next_observation: Any

action instance-attribute

action: Any

action_logprob instance-attribute

action_logprob: float

advantage class-attribute instance-attribute

advantage: float | None = None

target_value class-attribute instance-attribute

target_value: float | None = None

toyrl.ppo.ReplayBuffer dataclass

ReplayBuffer(buffer: list[Experience] = list(), env_ids: set[int] = set())

buffer class-attribute instance-attribute

buffer: list[Experience] = field(default_factory=list)

env_ids class-attribute instance-attribute

env_ids: set[int] = field(default_factory=set)

__len__

__len__() -> int

Source code in toyrl/ppo.py

def __len__(self) -> int:
    return len(self.buffer)

add_experience

add_experience(experience: Experience) -> None

Source code in toyrl/ppo.py

def add_experience(self, experience: Experience) -> None:
    self.buffer.append(experience)
    self.env_ids.add(experience.env_id)

reset

reset() -> None

Source code in toyrl/ppo.py

def reset(self) -> None:
    self.buffer = []
    self.env_ids = set()

sample

sample() -> list[Experience]

Source code in toyrl/ppo.py

def sample(self) -> list[Experience]:
    return self.buffer

toyrl.ppo.PPOAgent

PPOAgent(actor: ActorPolicyNet, critic: CriticValueNet, optimizer: Optimizer)

Source code in toyrl/ppo.py

def __init__(self, actor: ActorPolicyNet, critic: CriticValueNet, optimizer: optim.Optimizer) -> None:
    self.actor = actor
    self.critic = critic
    self.optimizer = optimizer
    self._replay_buffer = ReplayBuffer()

actor instance-attribute

actor = actor

critic instance-attribute

critic = critic

optimizer instance-attribute

optimizer = optimizer

add_experience

add_experience(experience: Experience) -> None

Source code in toyrl/ppo.py

def add_experience(self, experience: Experience) -> None:
    self._replay_buffer.add_experience(experience)

reset

reset() -> None

Source code in toyrl/ppo.py

def reset(self) -> None:
    self._replay_buffer.reset()

act

act(observation: Any) -> tuple[int, float]

Source code in toyrl/ppo.py

def act(self, observation: Any) -> tuple[int, float]:
    x = torch.from_numpy(observation.astype(np.float32))
    with torch.no_grad():
        logits = self.actor(x)
    probs = torch.nn.functional.softmax(logits, dim=-1)
    action = torch.distributions.Categorical(probs).sample()
    action_logprob = torch.log(probs[action])
    return action.item(), action_logprob.item()

net_update

net_update(num_minibatches: int, gamma: float, lambda_: float, epsilon: float, entropy_coef: float) -> float

Source code in toyrl/ppo.py

def net_update(
    self,
    num_minibatches: int,
    gamma: float,
    lambda_: float,
    epsilon: float,
    entropy_coef: float,
) -> float:
    raw_experiences = self._replay_buffer.sample()
    # calculate advantages and target values by GAE
    experiences = self._calc_adv_v_target(raw_experiences, gamma, lambda_)
    minibatch_size = len(experiences) // num_minibatches
    total_loss = 0.0
    for i in range(num_minibatches):
        batch_experiences = experiences[minibatch_size * i : minibatch_size * (i + 1)]
        observations = torch.tensor(np.array([exp.observation for exp in batch_experiences]), dtype=torch.float32)
        actions = torch.tensor(np.array([exp.action for exp in batch_experiences]), dtype=torch.int64)
        old_action_logprobs = torch.tensor(
            np.array([exp.action_logprob for exp in batch_experiences]), dtype=torch.float32
        )
        advantages = torch.tensor(np.array([exp.advantage for exp in batch_experiences]), dtype=torch.float32)
        target_v_values = torch.tensor(
            np.array([exp.target_value for exp in batch_experiences]), dtype=torch.float32
        )

        # critic value loss
        v_values = self.critic(observations).squeeze(1)
        critic_value_loss = torch.nn.functional.mse_loss(v_values, target_v_values)

        # actor policy loss
        action_logits = self.actor(observations)
        action_probs = torch.nn.functional.softmax(action_logits, dim=-1)
        action_entropy = torch.distributions.Categorical(action_probs).entropy()
        action_logprobs = torch.gather(action_probs.log(), 1, actions.unsqueeze(1)).squeeze(1)
        ratios = torch.exp(action_logprobs - old_action_logprobs)
        surr1 = ratios * advantages
        surr2 = torch.clamp(ratios, 1 - epsilon, 1 + epsilon) * advantages
        actor_policy_loss = -torch.min(surr1, surr2).mean() - entropy_coef * action_entropy.mean()

        loss = actor_policy_loss + critic_value_loss
        # update actor and critic
        self.optimizer.zero_grad()
        loss.backward()
        # clip
        torch.nn.utils.clip_grad_norm_(self.actor.parameters(), 0.5)
        torch.nn.utils.clip_grad_norm_(self.critic.parameters(), 0.5)
        self.optimizer.step()

        total_loss += loss.item()
    return total_loss / num_minibatches

toyrl.ppo.PPOTrainer

PPOTrainer(config: PPOConfig)

Source code in toyrl/ppo.py

def __init__(self, config: PPOConfig) -> None:
    self.config = config
    self.envs = self._make_env()
    env_dim = self.envs.single_observation_space.shape[0]
    action_num = self.envs.single_action_space.n
    actor = ActorPolicyNet(env_dim=env_dim, action_num=action_num)
    critic = CriticValueNet(env_dim=env_dim)
    optimizer = torch.optim.Adam(list(actor.parameters()) + list(critic.parameters()), lr=config.learning_rate)
    self.agent = PPOAgent(actor=actor, critic=critic, optimizer=optimizer)
    if config.log_wandb:
        wandb.init(
            # set the wandb project where this run will be logged
            project="PPO",
            name=f"[{config.env_name}]lr={config.learning_rate}",
            # track hyperparameters and run metadata
            config=asdict(config),
        )

config instance-attribute

config = config

envs instance-attribute

envs = _make_env()

agent instance-attribute

agent = PPOAgent(actor=actor, critic=critic, optimizer=optimizer)

train

train()

Source code in toyrl/ppo.py

def train(self):
    batch_size = self.config.time_horizons * self.config.num_envs
    num_iteration = self.config.total_timesteps // batch_size

    global_step = 0
    observations, _ = self.envs.reset()
    for iteration in range(num_iteration):
        if self.config.anneal_learning_rate:
            frac = 1.0 - iteration / num_iteration
            lr = frac * self.config.learning_rate
            self.agent.optimizer.param_groups[0]["lr"] = lr

        # Collect experience
        for step in range(self.config.time_horizons):
            global_step += self.config.num_envs
            actions, action_logprobs = [], []
            for obs in observations:
                action, action_logprob = self.agent.act(obs)
                actions.append(action)
                action_logprobs.append(action_logprob)
            next_observations, rewards, terminateds, truncateds, infos = self.envs.step(np.array(actions))
            for env_id in range(self.config.num_envs):
                experience = Experience(
                    env_id=env_id,
                    terminated=terminateds[env_id],
                    truncated=truncateds[env_id],
                    observation=observations[env_id],
                    action=actions[env_id],
                    action_logprob=action_logprobs[env_id],
                    reward=float(rewards[env_id]),
                    next_observation=next_observations[env_id],
                )
                self.agent.add_experience(experience)
            observations = next_observations

            if "episode" in infos:
                for i in range(self.config.num_envs):
                    if infos["_episode"][i]:
                        print(f"global_step={global_step}, episodic_return={infos['episode']['r'][i]}")
                        if self.config.log_wandb:
                            wandb.log(
                                {
                                    "global_step": global_step,
                                    "episodic_return": infos["episode"]["r"][i],
                                }
                            )

        # Update policy
        total_loss = 0.0
        for _ in range(self.config.update_epochs):
            loss = self.agent.net_update(
                gamma=self.config.gamma,
                lambda_=self.config.lambda_,
                epsilon=self.config.epsilon,
                entropy_coef=self.config.entropy_coef,
                num_minibatches=self.config.num_minibatches,
            )
            total_loss += loss
        loss = total_loss / self.config.update_epochs
        if self.config.log_wandb:
            wandb.log(
                {
                    "global_step": global_step,
                    "learning_rate": self.agent.optimizer.param_groups[0]["lr"],
                    "loss": loss,
                }
            )
        # Onpolicy reset
        self.agent.reset()

---

1. L. Graesser and W. L. Keng, Foundations of deep reinforcement learning: Theory and practice in python. Addison-Wesley Professional, 2019. ↩
